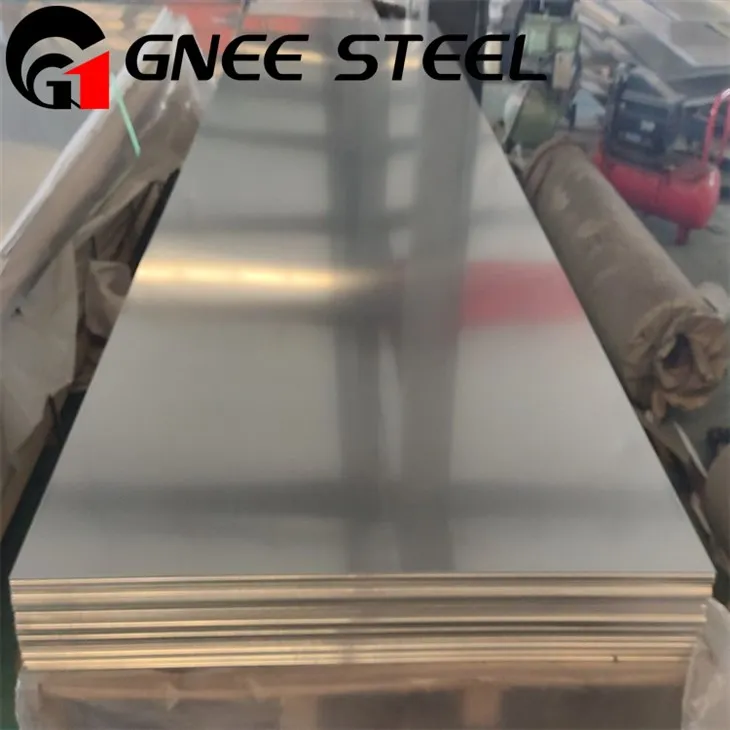

Inconel Alloy Astm B168 Unic N06690 Hlau Phaj

Inconel Alloy Astm B168 Unic N06690 Phaj

Inconel 690 (ASTM B168) plate is a high-chromium nickel-based alloy material known for its excellent high-temperature oxidation resistance and corrosion resistance. Lub alloy muaj cov kev sib piv siab ntawm txog {{% chromium, thiab muaj zog rau kev ua haujlwm hnyav (txog 1177 degree) thiab} The material has a typical tensile strength of 550-760MPa and an elongation of 30-45%, and has excellent processing formability while maintaining good mechanical strength. Nws cov ntsiab lus chromium siab muab cov khoom zoo rau cov acidic media (suav nrog nitric acid thiab cov pa roj ntsha Lub ASTM B168 qauv kom ntseeg tau tias cov khoom muaj cov tshuaj ruaj khov thiab cov khoom siv neeg ua haujlwm. Nws yog dav siv nyob rau hauv cov kub thiab siab siab ib puag ncig xws li cov khoom siv fais fab nuclear, tshuaj kho cov tshuaj tua hluav taws xob kom tawg. Nws yog qhov kev xaiv zoo tshaj plaws rau cov tseem ceeb hauv lub zog thiab tshuaj lom neeg.

Kev qhia tshwj xeeb ntawm inconel astm b 168 690 phaj

Qauv:	ASTM B168 \/ ASME SB168
Qhov loj me:	ASTM, ASME, thiab API
Cov ntawv tuab tuab:	Ntau los ntawm .008 "rau .0125"
Shims Thickness:	Ntau los ntawm .01 "rau .0125"
Daim Hlau Thickness:	Ranges los ntawm .0125 "rau 5. {00"
Cov ntawv txheeb \/ daim hlau dav:	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500 hli, 3000mm, 3500mm, thiab lwm yam
Cov ntawv txheeb \/ Daim phiaj ntev:	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, thiab lwm yam
Tempers:	Annealed, 1\/4, 1\/2 nyuaj, 3\/4 nyuaj, tag nrho nyuaj
Hardness:	Mos, nyuaj, ib nrab nyuaj, peb lub hlis twg nyuaj, lub caij nplooj ntoo hlav zog thiab lwm yam.
Tus nqi ntxiv kev pabcuam:	Cladding, kev kho cua sov, annealed, pickling, polish, dov, txiav, forging, tsis muaj fabrication thiab lwm yam.

Tshuaj lom neeg muaj pes tsawg leeg ntawm inconel 690 ntawv

Teem nqi	C	Mn	Si	S	CU	Zaum fe	Ni	Cr
Inconel 690	0. 05 Max	{{0 {}}. 5 Max	{{0 {}}. 5 Max	{{0 {}}. 015 max	{{0 {}}. 5 Max	7 – 11	Qho tseg	27 – 31

Cov Cuab Yeej Siv Cov Neeg Kho Tshuab ntawm B168 Inconel 690 Daim Hlau

Lub ntsiab	Tensile rm	Tensile rm	Rp 0. 2% tawm los	Rp 0. 2% tawm los	Elongation (2 "lossis 4D gl)
Inconel 690	86 ksi (min)	590 MPa (min)	35 ksi (min)	240 MPa (min)	Ntau dua los yog sib npaug rau 30% (min)

ASTM B168 UNICS N06690 SHER HLAU LOJ LOJ

Qhov loj me hauv hli	Qhov loj me hauv nti
3.18	.125"
3.96	.156"
6.35	.250"
9.53	.375"
15.9	.600"
22.2	.875"
28.6	1.125"
38.1	1.500"
50.8	2"
3.40	.134"
4.75	.187"
63.5	2.500"
7.92	.312"
12.7	.500"
19.1	.750"
25.4	1"
31.8	1.250"
44.5	1.750"
76.2	3"

Gnee pawg alloy Astm B168 tsis yog N06690 Chaw Tsim Tshuaj

Gnee Cov Pab Pawg Inconel ASTM B168 tsis yog N06690 Phaj Ntim

Gnee Cov Pab Pawg Incoy Astm B168 Tsis Muaj N06690 Hlau Hlau Ntsuas

Q: Peb puas tuaj yeem mus saib koj lub Hoobkas?
A: Txaus siab tos txais ib zaug peb muaj koj lub sijhawm peb yuav tuaj tos koj.
Q: Koj puas muaj kev tswj hwm zoo?
A: Yog, peb tau nce BV, SGS authentication.
Q: Koj puas tuaj yeem npaj cov zaub mov xa tuaj?
A: Kom paub meej, peb muaj tus nqi xa mus tas li uas tuaj yeem tau txais tus nqi zoo tshaj plaws los ntawm cov tuam txhab nkoj feem ntau thiab muab kev pabcuam kev tshaj lij.
