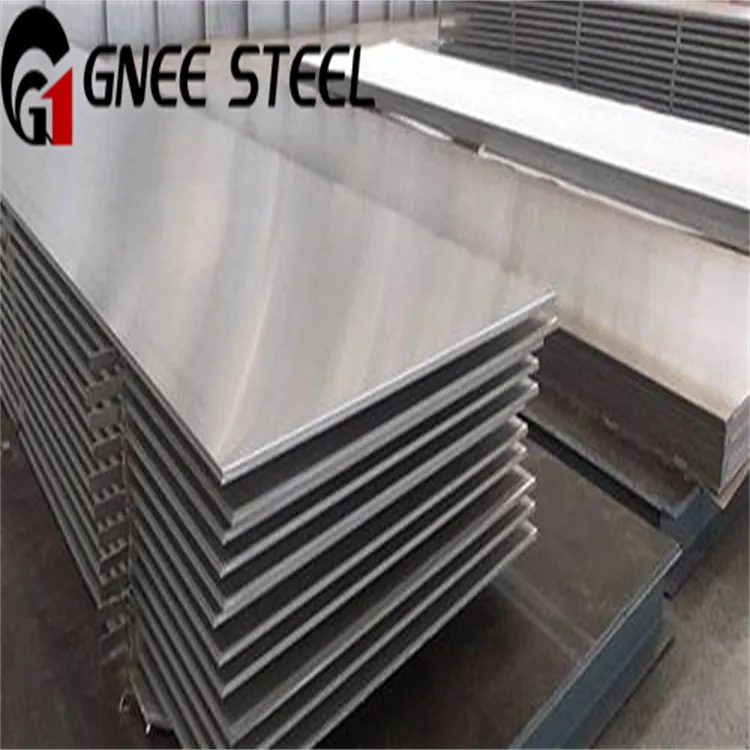

Inconel 718 Phaj
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Inconel 718 daim hlauyog cov ntawv ua haujlwm siab nickel-chromium alloy daim hlau muaj npe nrov rau lawv cov khoom siv kho tshuab zoo heev, tiv thaiv corrosion, thiab muaj peev xwm tiv taus qhov kub thiab txias. Cov hlau no tau siv dav hauv ntau yam lag luam, suav nrog aerospace, roj thiab roj, nuclear, thiab tshuaj ua haujlwm, qhov twg lub zog thiab kav ntev yog qhov tseem ceeb.
Inconel 718 Phaj Specification
Specifications:ASTM B670 / ASME SB670 AMS 5596 AMS 5597 Cov khoom
Dav:1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, thiab lwm yam
Ntev:2000mm, 2440mm, 3000mm, 5800mm, 7180mm, thiab lwm yam
Thickness:0.3mm txog 120mm
Hardness:Mos, Hard, Ib nrab Hard, Quarter Hard, Spring Hard thiab lwm yam.
Ua tiav:Kub dov phaj (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO (8), SATIN (Met with Plastic Coated)
Daim ntawv:Plain Sheet, Shim Sheet, Sawb, Flats, Blank (Lub voj voog), Ntiv nplhaib (Flange)
Inconel 718 PhajTshuaj muaj pes tsawg leeg
|
Nickel (Ni) |
50-55% |
|
Chromium (Cr) |
17-21% |
|
Hlau (Fe) |
seem |
|
Niobium + Tantalum (Nb + Ta) |
4.75-5.50% |
|
Molybdenum (hli) |
2.8-3.3% |
|
Titanium (Ti) |
0.65-1.15% |
|
Aluminium (Al) |
0.2-0.8% |
|
Cobalt (zeeg) |
1. 0 % max |
|
Manganese (Mn) |
0.35% max |
|
Silicon (Si) |
0.35% max |
|
Phosphorus (P) |
0.015% max |
|
Sulfur (S) |
0.015% max |
|
Cov pa roj carbon (C) |
0.08% max |
|
Boron |
0.006 max |
|
Copper (Cu) |
0.3% max |
Inconel 718 PhajLub cev muaj zog
|
Qhov ntom |
lb/ib 3 |
|
|
Annealed |
0.296 |
|
|
|
Annealed thiab Aged |
0.297 |
|
Melting Range |
degree F |
2300-2437 |
|
|
degree |
1260-1336 |
|
Tshwj xeeb kub ntawm 70 degree F |
Btu / lb degree F (ntawm 21 degree, J / kg degree) |
0.104 (435) |
|
Curie Kub |
Qib F (degree) |
|
|
Annealed Khoom |
<-320 (<-196) |
|
|
|
Annealed thiab Aged Material |
-170 (-112) |
|
Permeability ntawm 200 oersted thiab 70 degree F |
|
|
|
Annealed Khoom |
1.0013 |
|
|
Annealed thiab Aged Material |
1.0011 |
Inconel 718 PhajMechanical Properties
|
Kub |
Yield zog |
Tensile zog |
Elongation |
Kev txo qis ntawm cheeb tsam |
|||
|
Rp 0.2 |
Rm |
A |
Z |
||||
|
degree |
degree F |
MPa |
ksi ua |
MPa |
ksi ua |
% |
% |
|
20 |
68 |
1030 |
149.4 |
1280 |
185.6 |
12 |
15 |
Inconel 718 daim ntawv thov:
- Aerospace Cheebtsam (piv txwv li, turbine discs, shafts)
- Roj thiab roj extraction thiab refining khoom
- Nuclear fais fab nroj tsuag Cheebtsam
- Cov khoom siv tshuaj ua haujlwm (piv txwv li, reactors, heat exchangers)
- Kev siv dej hiav txwv (piv txwv li, subsea Cheebtsam)
Inconel 718 daim hlaumuab kev sib xyaw tshwj xeeb ntawm lub zog, kev tiv thaiv corrosion, thiab weldability, ua rau lawv zoo tagnrho rau kev ua haujlwm siab hauv ntau qhov kev lag luam. Lawv txoj kev ntseeg siab nyob rau hauv qhov xav tau ib puag ncig kom ntseeg tau tias lawv yog cov khoom siv uas nyiam rau cov engineers thiab manufacturers.
Cim npe nrov: inconel 718 daim hlau, Tuam Tshoj inconel 718 daim hlau lwm tus neeg
