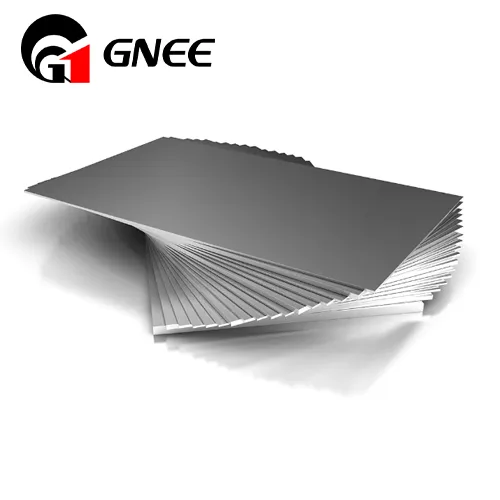

Inconel 693 Daim ntawv

Raws li cov khoom siv nickel alloy ntau heev, Inconel 693 daim ntawv yog tsim los ntawm flattening thiab shearing txias-dov coil. Lub thickness ntawm Inconel 693 txias-kuav los tiag ntawv yog feem ntau tsawg dua 5 hli.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

ib 693yog ib tug high-chromium nickel puag alloy nrog zoo heev corrosion kuj thiab kub creep-rupture zog. IN-693 yog siv rau hauv cov ntawv thov hlau plua plav thiab lwm qhov chaw ua haujlwm kub. GNEE Steel manufactures Inconel 693 nyob rau hauv cov ntaub ntawv xws li yeeb nkab, phaj, pas nrig, hlau, thiab flange. Peb muab cov qauv ntau thiab tsawg thiab cov duab ntxiv rau kev tsim tshwj xeeb kev cai alloys uas yog haum rau cov neeg siv khoom. Ntau qhov ntau thiab cov ntawv cog lus muaj nyob rau tag nrho peb cov ntaub ntawv alloy. Thov hu rau peb nrog koj cov specifications kom tau txais ib daim ntawv tsocai rau cov ntaub ntawv.

Tshuaj muaj pes tsawg leeg

Cr	Fe	Cu	Ni	Ti
27.0-31.0	2.50-6.00	Tsawg dua lossis sib npaug rau 0.50	So	1.00
C	Si	Mn	P	S
Tsawg dua lossis sib npaug rau 0.15	Tsawg dua lossis sib npaug rau 0.50	Tsawg dua los yog sib npaug rau 1.00	Tsawg dua lossis sib npaug rau 0.01	Tsawg dua lossis sib npaug rau 0.015
Al	Nb
2.5-4.0	0.5-2.5

Mechanical Properties 20 degree

0.2% Yield zog R_p Ntau dua lossis sib npaug N / mm²	Tensile zog R_m N / hli²	Elongation A₅ Ntau dua lossis sib npaug li %	Modulus ntawm elasticity kN / hli²	Hardness HB 30 Tsawg dua los yog sib npaug rau HB
1000	Ntau dua lossis sib npaug rau 1150	15	200	330

Lub cev muaj zog

Qhov ntom g/cm³	tshwj xeeb kub muaj peev xwm J/kg K	Thermal conductivity W/m K	Hluav taws xob resistivity Ω mm²/m
7.77	475	16	1.16

inconel 693

Inconel 693 Daim Ntawv Corrosion Resistance

Alloy 693 muaj kev tiv thaiv zoo tshaj rau cov hlau plua plav, tshwj xeeb tshaj yog aggressive form of carburization uas tuaj yeem ua rau tsis ua hauj lwm tom qab raug luv luv. Cov huab cua uas muaj cov xov xwm txo qis (xws li cov pa roj carbon monoxide thiab hydrogen) paub tias yuav ua rau cov hlau plua plav ntawm qhov kub siab. Alloy 693 muaj kev tiv thaiv zoo rau sulfidation hauv ob qho tib si oxidizing thiab txo qhov chaw uas muaj leej faj. Tsis tas li ntawd, cov hlau ua tau zoo thaum raug oxide-nplua nuj tawm xws li iav frit thiab fluxing compounds ntawm qhov kub txog li 1100 degree (2012 degree F).
