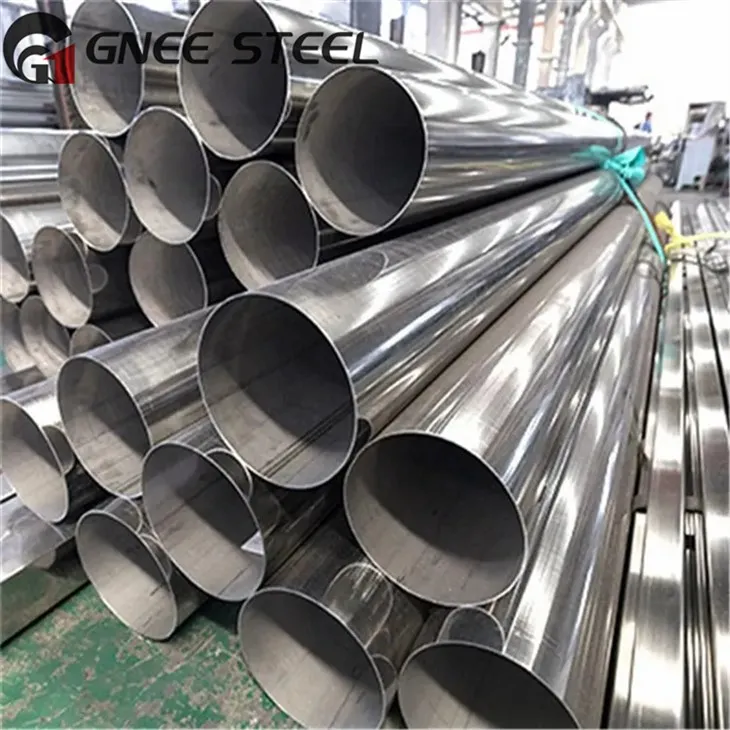

Inconel 686 Alloy welded yeeb nkab
Puab: Round
Cov txheej txheem: Kub Rolled
Kev kho deg: ci
Thauj Pob: Txheem Ntim
Specification: ntev 400-4000mm, dav 40-100mm, thickness 3mm
Muaj Peev Xwm Ntau Lawm: 500 Tuj / Lub Hlis
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Inconel 686 Alloy Welded Pipe muab los ntawm GNEE muaj kev ua haujlwm zoo thiab vuam khoom. Nws tuaj yeem ua tiav los ntawm cov txheej txheem txheej txheem, suav nrog milling, drilling, tig thiab sib tsoo.
Inconel 686 ERW Steel Pipe yog tsim los ntawm npib tsib xee (Ni), chromium (Cr), molybdenum (Mo) thiab tungsten (W), uas cov ntsiab lus chromium nce ntawm 16% mus rau 21%, thaum cov ntsiab lus ntawm molybdenum thiab tungsten tseem nyob. nyob rau theem zoo sib xws.
Inconel 686 Alloy ERW Yeeb Nkab feem ntau yog siv rau hauv cov txheej txheem tshuaj, kev tswj kev ua qias tuaj, cov ntaub so ntswg thiab ntawv, cov khoom siv khib nyiab thiab cov khib nyiab hauv tsev, thiab feem ntau pom muaj nyob rau hauv cov khoom siv hluav taws xob, cov reactors, cov evaporators thiab cov kav xa dej.
Cov ntaub ntawv khoom
Qib sib npaug ntawm Inconel 2.4606 Welded Tubing
| STANDARD | WERKSTOFF NR. | UNS | EN npe |
| ib 686 | 2.4606 | N06686 | NiCr21Mo16W |
Tshuaj muaj pes tsawg leeg ntawm Welded N06686 Inconel Alloy Tubes
| Qib | C % |
Si Tsawg dua los yog sib npaug li % |
Mn Tsawg dua los yog sib npaug li % |
P Tsawg dua los yog sib npaug li % |
S Tsawg dua los yog sib npaug li % |
Cr % |
Mo % |
Ni % |
V % |
Ti Tsawg dua los yog sib npaug li % |
Al % |
Co % |
Fe % |
W % |
| ib 686 | Tsawg dua lossis sib npaug rau 0.010 | 0.08 | 0.75 | 0.025 | 0.015 | 19.0-23.0 | 15.0-17.0 | So | Tsawg dua lossis sib npaug rau 0.20 | 0.02-0.25 | Tsawg dua lossis sib npaug rau 0.50 | Tsawg dua los yog sib npaug rau 1.00 | Tsawg dua lossis sib npaug rau 2.00 | 3.00-4.40 |
Inconel Alloy 2.4606 ERW Tubes Mechanical Properties
| Element | 0.2% Yield zog Rp Ntau dua lossis sib npaug N / mm² |
Tensile zog Rm N / mm² |
Elongation A5 Ntau dua lossis sib npaug li % |
| ib 686 | 385 | Ntau dua lossis sib npaug rau 760 | 65 |
Khoom Qhia
UNS N06686 Inconel Superheater Tubes
Vim li cas thiaj xaiv GNEE
GNEE yog lub tuam txhab tshwj xeeb hauv kev tsim cov hlau tsis muaj steel, duplex steel, super duplex steel, kub kub alloys, corrosion resistant alloys, non-ferrous hlau (nickel, titanium, zirconium), thiab alloy flanges, yeeb nkab fittings, thiab Hoobkas- ua pipeline prefabrication.
Tiv tauj peb hnub no rau ib qho kev tsocai pub dawb, lossis xa cov lus nug nrog cov kev xav tau ua tiav rauss@gneesteel.com.
GNEE Factory Environment
GNEE packaging thiab Shipping
PRODUCTS TESTING
FAQ
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Zoo siab txais tos thaum peb muaj koj lub sijhawm peb yuav tuaj tos koj.
Q: Koj puas muaj kev tswj xyuas zoo?
A: Yog, peb tau txais BV, SGS authentication.
Q: Koj puas tuaj yeem npaj cov khoom xa tuaj?
A: Tseeb, peb muaj cov neeg xa khoom mus tas li uas tuaj yeem tau txais tus nqi zoo tshaj plaws los ntawm ntau lub tuam txhab nkoj thiab muab kev pabcuam tshaj lij.
Cim npe nrov: inconel 686 alloy welded yeeb nkab, Tuam Tshoj inconel 686 alloy welded yeeb nkab lwm tus neeg
