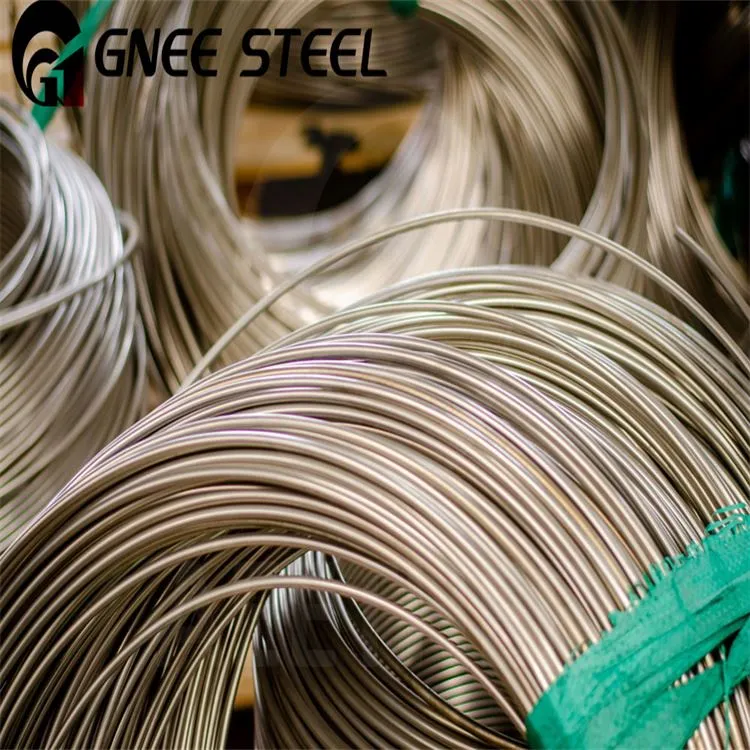

Inconel 602CA Coil Tube
Inconel alloy 602CA Coil Tube
alloy 602CA Coil Tube

Inconel 602CA Coil Tube

Inconel 602CA Coil Tube yog ib qho ntawm feem ntau oxidation resistant nickel alloys muaj. Qhov zoo tshaj plaws oxidation tsis kam yog ua tiav los ntawm cov ntsiab lus siab chromium (25%) ntxiv nrog txhuas (2.2%) thiab microalloying ntxiv ntawm yttrium (0.1%).

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Inconel 602CA coil tubeyog ib txoj kab me me txuas ntxiv Inconel 602CA raj tsim los ntawm vuam, tsis tu ncua txias txias thiab coiling lub Inconel 602CA sawb. Vim nws qhov txuas ntxiv, peb yuav siv cov txheej txheem ci ntsa iab kom tsis txhob tsim cov oxide tawv hauv lub raj. Inconel 602CA coil tubes muaj qhov kub thiab txias tsis kam thiab corrosion kuj, nrog rau kev sib xyaw zoo. Peb kuj muab Inconel 602CA seamless coil raj thiab Inconel 602CA welded coil raj rau koj xaiv. Nws yuav tsum raug sau tseg tias vim qhov sib txawv ntawm cov thev naus laus zis, qhov ntev ntawm Inconel 602CA seamless coil tube ntawm tib qhov loj yuav tsawg dua li ntawm Inconel 602CA welded coil raj. Thov lees paub qhov no nrog peb.

Inconel 602CA coil tube tshuaj muaj pes tsawg leeg

%	Ni	Cr	Cu	C	Mn	Si	Y	Fe	Ti	Al	Zr
Min	Tshuav	24	0	0.15	0	0	0.05	8	0.1	1.8	0.01
Max	Tshuav	26	0.1	0.25	0.15	0.5	0.12	11	0.2	2.4	0.1

Inconel 602CA coil tube Lub cev muaj zog

Qhov ceev g / cm3	Melting range ��C	Tshwj xeeb kub muaj peev xwm J/kg .��	Thermal conductivity W/m	Hluav taws xob resistivity ��?.m
7.9	1340-1400	450	11.3	1.15

Inconel 602CA coil tube Mechanical Properties (tus nqi qis kawg ntawm 20 degree)

Mechanical & Physical Properties	Qhov kawg Tensile Strength / MPa	0.2% Yield Strength /MPa	Elongation%	Yam tsawg kawg Creep 0.0001% ib teev	10, 000 hr Rupture Strength	Coefficient ntawm Thermal Expansion /µm / m degree **	Thermal conductivity / kcal / (hr.m. degree)	Modulus ntawm Elasticity / GPa
21.1°C dej	675	270	38	-	-	-	8.94	215
9 3,3de	650	240	30	-	-	14.15	10.58	209
204.4 hli	625	220	30	-	-	14.27	12.04	201
315.6 degree	600	200	30	-	-	14.42	13.33	197
371.1 degree	580	190	30	-	-	14.63	14.53	192
5 37,8d	560	180	43	-	-	14.9	17.26	189
684.9 ,ua	520	175	30	185	-	15.3	18.3	185
700 degree	420	170	30	132	155	-	20.53	-
815 degree	284	239	78	32	42	16	-	154
870 degree	226	197	82	16.5	22.1	16.71	22.02	137
982 degree	118	105	78	6.6	10.3	17.31	23.51	118
1093 degree	90	80	85	2.2	4.6	17.91	15.15	102
1204 degree	40	34	96	-	3	-	-	-
