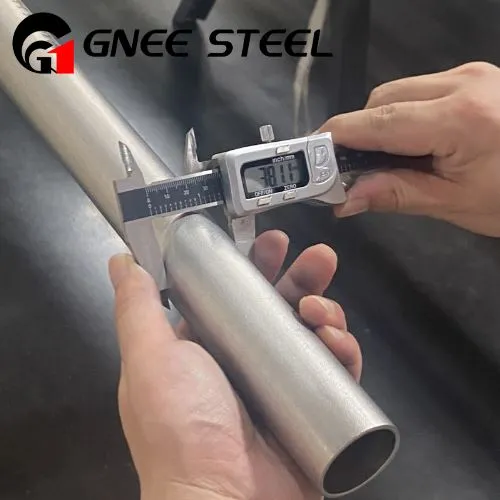

UNS S66286 Tube
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Nickel-based super alloy Incoloy A-286(UNS S66286) yog Fe-25Ni-15Cr High-temperature alloy raws li molybdenum, titanium, aluminium, vanadium thiab kab boron rau kev ntxiv dag zog. Nws muaj zog yield zog thiab durability thiab creep zog hauv qab 650 degree, thiab muaj zoo ua plasticity thiab txaus siab vuam kev kawm. Nws yog qhov tsim nyog rau kev tsim cov khoom kub kub ntawm cov tshuab aero-cav, xws li turbine discs, xovxwm discs, rotor hniav thiab fasteners, uas ua haujlwm ntev hauv qab 650 degree. Lub alloy tuaj yeem tsim cov khoom deformed ntawm ntau yam duab, xws li discs, forgings, daim hlau, rods, xov hlau thiab nplhaib.
UNS S66286Tshuaj muaj pes tsawg leeg
| % | Cr | Ni | Mo | Co | Va | Al | Ti | B | C | Fe | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 13.5 | 24 | 1 | - | 0.1 | - | 1.9 | 0.003 | - | - | - | - | - | - |
| MAX | 16 | 27 | 1.5 | 1 | 0.5 | 0.35 | 2.35 | 0.01 | 0.08 | Tshuav | 2 | 1 | 0.025 | 0.02 |
UNS S66286Lub cev muaj zog
| Qhov ceev, g / cm3 | Melting Range, degree | Thaum tshav kub kub, J/kg• degree | Permeability ntawm 70 degree F (21 degree) thiab 200 oersted (15.9 kA / m) |
|---|---|---|---|
| 7.94 | 1370-1430 | 419 | 1.007 |
UNS S66286yam tsawg kawg nkaus txhua yam khoom nyob rau hauv chav tsev kub:
| Tensile zog (Rm N / m㎡) | Yield zog (RP{0}}.2 N / m㎡) | Elongation (A5 /%) | Brinell hardness HB |
|---|---|---|---|
| 610 | 270 | 30 | Tsawg dua lossis sib npaug li 32 |
Cov yam ntxwv ntawm Alloy UNS S66286
● Zoo machinability
● Zoo heev fabrication yam ntxwv
● Zoo oxidation tsis kam mus txog 800 degree
● Yuav ua tau los ntawm AOD reefing los yog nqus induction melting
● Zoo creep-rupture lub zog thaum lub sij hawm ntev-kub raug
● Tsis-magnetic txawm tias tom qab mob khaub thuas deformation
● High ductility nyob rau hauv notched seem
● High corrosion kuj
● Zoo rau nruab nrab corrosion daim ntaub ntawv nyob rau hauv aqueous daws
● High mechanical zog vim muaj hnub nyoog-hardenability
● Zoo creep-rupture lub zog thaum lub sij hawm ntev-kub raug
● Lub zog muaj zog uas zoo khaws cia txog li 700 degree
