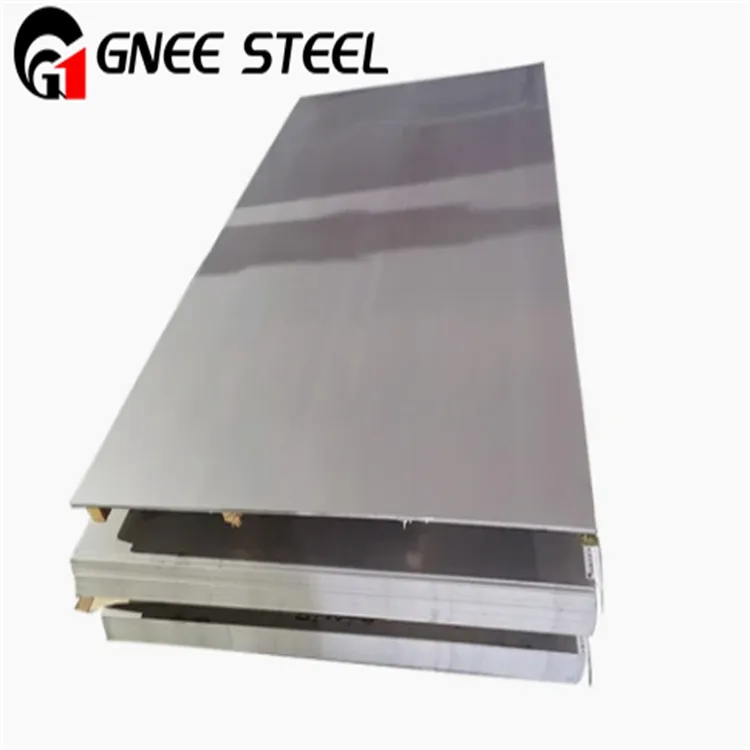

Incoloy Alloy 800 / H / HT Ntawv Sawb
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Txheej txheem cej luam:Incoloy Alloy 800, 800H, thiab 800HT yog cov nickel-hlau-chromium alloys muaj npe nrov rau lawv qhov tshwj xeeb tiv thaiv oxidation thiab carburization ntawm qhov kub thiab txias. Cov alloys feem ntau yog siv rau hauv ib puag ncig uas xav tau lub zog zoo dua thiab tiv thaiv corrosion, ua rau lawv zoo tagnrho rau ntau yam kev lag luam.
Incoloy 800/800H/800HT Tshuaj muaj pes tsawg leeg:
| Qauv | C | Fe | Ni | Cr | Al+Ti | Ti | Al | Si |
|---|---|---|---|---|---|---|---|---|
| 800 | Tsawg dua los yog sib npaug rau 0.1 | >39.5 | 30-35 | 19-23 | 0.3-1.2 | 0.15-0.6 | 0.15-0.6 | Tsawg dua los yog sib npaug rau 1.0 |
| 800H | 0.05-0.10 | >39.5 | 30-35 | 19-23 | 0.3-1.2 | 0.15-0.6 | 0.15-0.6 | Tsawg dua los yog sib npaug rau 1.0 |
| 800 HT | 0.06-0.10 | >39.5 | 30-35 | 19-23 | 0.85-1.2 | 0.25-0.6 | 0.25-0.6 | Tsawg dua los yog sib npaug rau 1.0 |
⁎ Cov tshuaj muaj pes tsawg leeg ntawm peb cov ntaub ntawv tsis tshua muaj qhov sib txawv, uas ua rau lawv tsis tshua muaj qhov sib txawv ntawm tag nrho cov cua sov thiab corrosion kuj thiab lub cev muaj zog.
ncoloy 800/800H/800HT Physical Properties
| Qhov ntom | Melting ntau |
|---|---|
| 8. 0 g/cm³ | 1357-1385 degree |
Incoloy 800/800H/800HT Mechanical Properties (tus nqi qis kawg ntawm 20 degree)
| ALLOY | Tensile zog (Rm N / m ㎡) | Yield zog (RP 0.2N/m㎡) | Elongation (A5 /%) |
|---|---|---|---|
| Kev 800 | 500 | 210 | 35 |
| Incoloy 800 H | 450 | 180 | 35 |
Daim ntawv thov:
Thaum tshav kub kub Exchangers:Siv nyob rau hauv high-kub kub exchangers vim nws thermal stability.
Rauv Cheebtsam:Qhov zoo tshaj plaws rau cov khoom raug kub kub hauv qhov cub thiab kilns.
Kev ua tshuaj lom neeg:Ua hauj lwm hauv cov tshuaj reactors thiab cov cuab yeej ua haujlwm uas tsis kam tiv thaiv corrosive ib puag ncig yog qhov tseem ceeb.
Kev tsim hluav taws xob:Siv nyob rau hauv fais fab nroj tsuag rau chav generators thiab lwm yam high-temperature Cheebtsam.
Fabrication thiab Machining:Incoloy Alloy 800 / H / HT cov ntawv thiab cov strips tuaj yeem tsim tau yooj yim thiab siv cov txheej txheem txheej txheem. Lub alloy lub workability tso cai rau precision manufacturing ntawm complex qhov chaw thiab Cheebtsam.
Quality Assurance:Peb Incoloy Alloy 800 / H / HT daim ntawv strips yog tsim los ua kom tau raws li cov qauv kev lag luam nruj thiab raug tswj xyuas cov txheej txheem nruj kom ntseeg tau tias qib siab tshaj plaws ntawm kev ua tau zoo thiab kev ntseeg tau.
Ntim thiab xa khoom:Cov nplooj ntawv alloy thiab strips tau ua tib zoo ntim los tiv thaiv kev puas tsuaj thaum lub sijhawm thauj mus los thiab muaj nyob rau hauv ntau qhov ntau thiab tsawg kom tau raws li cov kev xav tau tshwj xeeb.
Yog xav paub ntxiv los yog xav tau ib qho kev tsocai, thov hu rau peb.
Cim npe nrov: Tuam Tshoj incoloy 800/h/ht sheet strip lwm tus neeg
