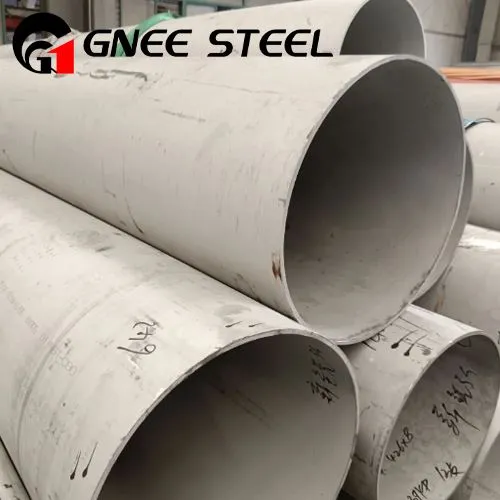

UNS N10675 Tube
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
UNS N10675Cov kav dej yog ua los ntawm hastelloy ntawm qib B-3 uas ua rau nws muaj txiaj ntsig zoo hauv kev lag luam dav siv vim nws qee qhov tsis sib xws. Cov yeeb nkab muaj ductility zoo heev nyob rau hauv nruab nrab kub, nthuav tawm zoo heev tiv thaiv corrosion, pitting tsis kam thiab kev nyuaj siab corrosion cracking. Ntxiv mus, cov yeeb nkab muaj kev tiv thaiv rau cov cua sov cuam tshuam ib puag ncig.
Tshuaj muaj pes tsawg leeg
| Qib | UNS | C Tsawg dua los yog sib npaug | Mn Tsawg dua lossis sib npaug | P Tsawg dua lossis sib npaug | S Tsawg dua los yog sib npaug | Si Less than los sib npaug | Ni | Cr | Mo | Fe | Co Tsawg dua los yog sib npaug |
| Hastelloy B3 | N10675 | 0.01 | 3.0 | 0.03 | 0.01 | 0.10 | 65. 0min | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 3.0 |
Mechanical Properties
| Mechanical zog | Tensile, min, ksi [MPa] | Yield, min, ksi [MPa] | Elongation,% (min) |
| Hastelloy B3 | 110[760] | 51[350] | 40 |
Yam Khoom Lub cev
| Qhov ntom | Thermal conductivity | Tshwj xeeb kub | Melting Range | ||||
|---|---|---|---|---|---|---|---|
| lb/ib 3 | g/cm3 | Btu.in/h.ft2. degree F | W/m. degree | Btu/lb. degree F | J/kg* degree | degree F | degree |
| 0.333 | 9.22 | 78 | 11.2 | 0.089 | 373 | 2500-2585 | 1370-1418 |
HastelloyUNS N10675cev standard
- ASTM B474 Txuj Specification rau Hluav Taws Xob Fusion Welded Nickel thiab Nickel Alloy Yeeb Nkab
- ASTM B622 Standard Specification rau Seamless Nickel thiab Nickel-Cobalt Alloy Yeeb thiab Tube
- ASTM B619 Txuj Specification rau Welded Nickel thiab Nickel-Cobalt Alloy Yeeb Nkab
AlloyUNS N10675Cov yeeb nkab nta suav nrog
1. Corrosion kuj:Hastelloy B-3 muab kev tiv thaiv corrosion zoo heev hauv kev txo cov cheeb tsam uas muaj chlorides, sulfuric acid, phosphoric acid, thiab lwm yam muaj zog acids.
2. Lub zog muaj zog:UNS N10675 Hastelloy yeeb nkab muaj lub zog tensile siab thiab tuaj yeem tiv taus kev ntxhov siab tseem ceeb.
3. Thaum tshav kub kub tsis kam:ASTM B474 Hastelloy B3 yeeb nkab kuj tseem tuaj yeem ua haujlwm nyob rau hauv qhov kub thiab txias, qhov kub siab tshaj plaws yog siab li 1,650 degree F (899 degree). Hastelloy B3 seamless yeeb nkab yog ruaj khov thiab txhim khu kev qha txawm nyob rau hauv qhov kub thiab txias thiab yog haum rau high-temperature daim ntaub ntawv.
4. Versatility:Hastelloy B-3 cov kav dej tuaj yeem tsim tau yooj yim thiab welded, tso cai rau ntau yam kev xaiv fabrication.
