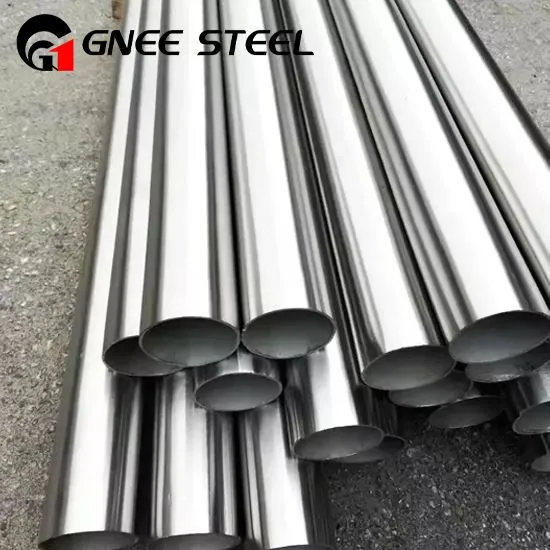

Hastelloy G30 Seamless Yeeb Nkab
Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.
- Xa E-mail:ss@gneesteel.com
- Tel:+8615824687445
Hastelloy G30 Seamless Pipes yog dav siv nyob rau hauv cov tshuaj thiab petrochemical kev lag luam vim lawv zoo heev mechanical zog thiab superior tiv thaiv corrosion. Lawv yog tsim los ntawm alloyHastelloy G30, uas muaj nickel, molybdenum, chromium, thiab hlau. Alloy G30 Seamless Pipes muaj ntau yam kev siv, los ntawm acid pickling mus pov tseg, thiab tau dhau los ua neeg nyiam nyob rau xyoo tas los no.
Hastelloy G-30 Pipe Chemical Composition
| Element | Cov ntsiab lus (%) |
|---|---|
| Nickel, Nia | 43 |
| Chromium, Cr | 28.0-31.5 |
| Hlau, Fe | 13-17 |
| Cobalt, Co | 5 |
| Molybdenum, Mo | 4-6 |
| Tungsten, W | 1.50 – 4 |
| Manganese, Mn | 1.50 |
| tooj, Cu | 1 – 2 .40 |
| Silicon, Sib | 0.8 |
| Phosphorus, P | 0.040 |
| Carbon, C | 0.030 |
| Sulfur, S | 0.020 |
Hastelloy G-30 Pipes Physical Properties
| Cov khoom | Metric | Imperial |
|---|---|---|
| Qhov ntom | 8.22 g / cm³ | 0.297 lb/in³ |
| Melting point | 1371ºC | 2500ºF |
Hastelloy G30 Piping Mechanical Properties
| Cov khoom | Metric | Imperial |
|---|---|---|
| Tensile zog | 1096 MPa rau | 159 000 psi |
| Yield strength (@0.2%) | 1000 MPa | 145 000 psi |
| Modulus ntawm elasticity (phaj kub kho rau 1177 degree, ceev quenched) | 202 GPA | 29 300 tzs |
| Elongation ntawm tawg (hauv 50.8 hli) | 12% | 12% |
| Kev txo qis ntawm cheeb tsam | 57% | 57% |
| Hardness, Brinell (hloov los ntawm Rockwell C hardness) | 304 | 304 |
| Hardness, Knoop (hloov los ntawm Rockwell C hardness) | 326 | 326 |
| Hardness, Rockwell C | 32 | 32 |
| Hardness, Vickers (hloov los ntawm Rockwell C hardness) | 316 | 316 |
Cov yam ntxwv tseem ceeb ntawm Hastelloy Alloy G30 Seamless Yeeb Nkab
Cov khoom thiab cov txiaj ntsig
Hastelloy G30 yog nickel-base alloy uas muaj 42.5% nickel, 5.5% molybdenum, 14.5% chromium, thiab 3% hlau. Cov hlau no muaj ntau yam zoo dua lwm cov ntaub ntawv, xws li kev siv ntau yam, ua haujlwm ntev, thiab tsis kam mus rau ntau yam tshuaj. Cov kav dej seamless ua los ntawm cov hlau no zoo heev rau pitting thiab crevice corrosion, txawm nyob rau hauv ib puag ncig hnyav.
Daim ntawv thov
Hastelloy G30 seamless kav feem ntau yog siv nyob rau hauv cov tshuaj ua kev lag luam, tshwj xeeb tshaj yog rau cov kev siv uas yuav tsum tau high-temperature thiab high-pressure kuj. Lawv feem ntau siv nyob rau hauv cov cua kub exchangers, distillation kab, thiab sib tov tso tsheb hlau luam. Cov kav dej no tseem siv tau rau hauv cov tshuab flue gas desulfurization thiab cov khoom siv pov tseg.
Kev tsim khoom
Hastelloy G30 seamless kav yog tsim los ntawm cov txheej txheem hu ua extrusion. Cov txheej txheem no suav nrog cua sov cov hlau mus rau qhov kub thiab txias thiab tom qab ntawd yuam nws los ntawm kev tuag los ua nws rau hauv cov yeeb nkab. Seamless kav yog nyiam dua welded kav vim hais tias lawv tsis muaj cov pob qij txha, uas txo qhov kev pheej hmoo ntawm cov dej los yog corrosion.
Kev kho thiab tshuaj xyuas
Ib zaug ntsia, nws yog ib qho tseem ceeb kom tsis tu ncua xyuas thiab tswj Hastelloy G30 seamless kav los xyuas kom meej lawv lub neej ntev thiab kev ua tau zoo. Nws raug nquahu kom ua qhov kev tshuaj xyuas ib ntus rau corrosion thiab yaig, nrog rau nrhiav cov cim ntawm kev puas tsuaj ntawm cov qauv. Kev tu kom zoo nrog cov ntaub ntawv zoo thiab cov cuab yeej tseem ceeb yog qhov tseem ceeb los tiv thaiv kev tsim cov khoom corrosive.
Packing & Delivery
Cim npe nrov: Hastelloy g30 seamless yeeb nkab, Tuam Tshoj hastelloy g30 seamless yeeb nkab lwm tus neeg
