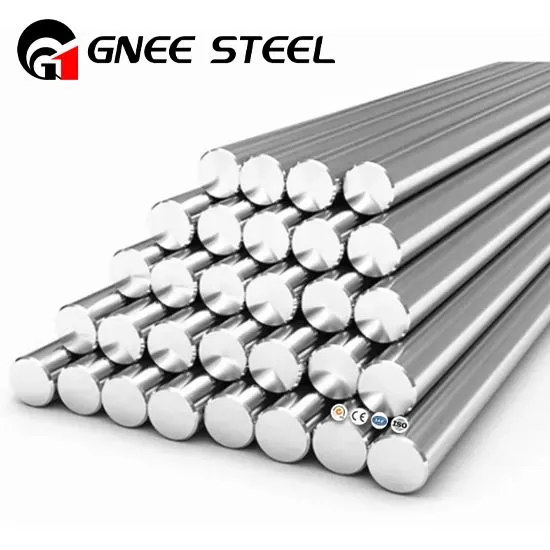

Hastelloy G30 Round Bar
Hastelloy G30 Round Bar
Hastelloy G30 Round Bar
Hastelloy G30 Round Bar

Hastelloy G30 Round Bar

Hastelloy G-30 Round Bars muab los ntawm GNEE Steel yog cov khoom siv ua haujlwm siab ua los ntawm nickel-chromium-hlau-molybdenum puag nrog ntxiv ntawm tungsten. Cov kab no muaj nyob rau hauv ntau hom duab thiab ntau thiab tsawg ntawm cov nqi sib tw heev yam tsis muaj kev cuam tshuam rau qhov zoo.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Hastelloy G-30yog ib qho kev ua haujlwm siab nickel alloy. Nws cov tshuaj muaj pes tsawg leeg yog ua tib zoo tswj los muab kev tiv thaiv corrosion zoo heev thiab kev ua haujlwm kub. Los ntawm cov txheej txheem tsim khoom thiab kev xaiv cov khoom zoo, peb Hastelloy G-30 puag ncig thiab cov pas nrig muaj cov khoom zoo xws li lub zog siab, corrosion resistance, oxidation kuj thiab creep kuj. Cov khoom no ua rau peb cov kab puag ncig siv dav hauv tshuaj, roj av, tshuaj, aerospace thiab lwm yam haujlwm.

Khoom npe	G30 Hastelloy bar
Specifications	ASTM B574 / ASME SB574
Qib	G30 Hastelloy - UNS N06030
Txoj kab uas hla	5mm txog 500mm
Ntev	100mm txog 3000mm Ntev & Saum toj no
Ua kom tiav	Bright, Polish & Dub
Daim ntawv	Round, Square, Hex (A / F), Rectangle, Billet, Ingot, Forging thiab lwm yam.
Ua siab ntev	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 los yog raws li cov neeg xav tau

Qib sib npaug

Qib	UNS	Werkstoff Nr.
Hastelloy G-30	TIAB SA 2.4603	UNS N06030

Tshuaj muaj pes tsawg leeg

Ni	Cr	Fe	Mo	Cu	Mn	Co	C	W	Si	P	S	Nb+Ta
Rem	28.0-31.5	13.0-17.0	4.0-6.0	1.0-2.4	1.5	5.0	0.03	1.5-4.0	0.8	0.04	0.02	0.30-1.50

Mechanical Properties

Tensile zog, Min ksi	Yield Strength, (0.2% offset), Min, ksi	Min. Elongation hauv 2 ",%	Qhov ceev lb/in³
85	35	30.0	0.297

product-929-207

Daim ntawv thov ntawm Hastelloy G30 Round Bars

Hastelloy G30 round tuav yog dav siv nyob rau hauv kev lag luam uas yuav tsum tau zoo heev corrosion kuj. Cov kab puag ncig no muaj kev tiv thaiv zoo heev hauv kev lag luam xws li kev ua tshuaj lom neeg, petrochemicals, tshuaj thiab tswj kev ua qias tuaj, thiab muaj kev tiv thaiv zoo rau cov tshuaj corrosive thiab ib puag ncig hnyav. Lawv feem ntau siv rau hauv cov khoom tseem ceeb xws li li qub, twj tso kua mis, cov khoom siv hluav taws xob thiab cov reactors, thiab lawv lub zog tensile siab thiab zoo ductility kom ntseeg tau tias kev ua tau zoo. Hastelloy G30 puag ncig tuav yog qhov kev xaiv zoo tshaj plaws rau kev thov kev thov hauv ntau qhov kev lag luam vim lawv muaj ntau yam thiab kev ntseeg tau.
