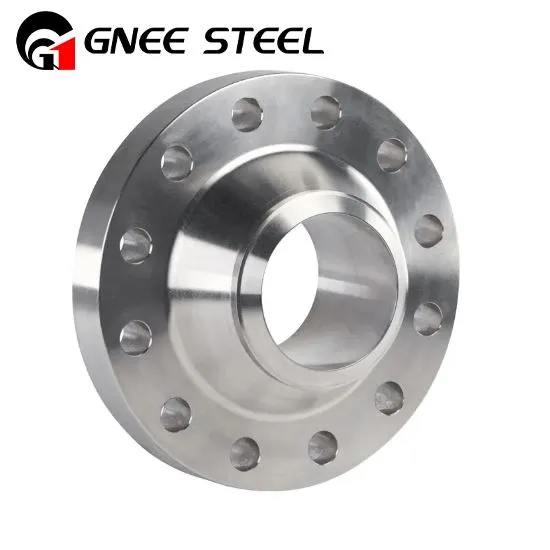

Super Duplex 2507 Flanges UNS S32750
Super Duplex 2507 Flanges UNS S32750
Super Duplex 2507 Flanges UNS S32750
Super Duplex 2507 Flanges UNS S32750

Super Duplex 2507 Flanges UNS S32750

Super Duplex Steel UNS S32750 Flanges yog los ntawm tsev neeg ntawm cov hlau duplex. Cov flanges no tau sib xyaw microstructure ntawm qib austenitic thiab ferritic. Cov flanges no muaj ntau dua chromium thiab molybdenum cov ntsiab lus uas yog qhov sib txawv loj. Qhov no muaj cov cuab yeej tiv thaiv corrosion ntau dua li cov qib txheem.

Xa kev nug

Tsham tam sim no

Raws li tus neeg muag khoom thiab chaw tsim khoom nyob rau hauv Suav teb, GNEE Steel muab tus nqi -nickel zoo- raws li cov khoom siv alloy.

Xa E-mail:ss@gneesteel.com
Tel:+8615824687445

Khoom Taw qhia

Super Duplex 2507 flanges tsis tsim nyog rau kev pabcuam siab lossis qis qis, zoo li lwm cov duplex ferritic / austenitic steel. Duplex 2507 yog super duplex austenitic qib SS. 25% chromium, 4% molybdenum, thiab 7% nickel yog cov ntsiab lus tseem ceeb ntawm Super Duplex Steel 2507 Flange. Qhov flange alloy no tuaj yeem siv rau hauv cov xwm txheej uas xav tau lub zog loj thiab kev tiv thaiv corrosion.

Super Duplex 2507 Flanges muaj feem xyuam rau petrochemical, tshuaj ua haujlwm, thiab cov khoom siv dej ntsev. Nws muaj cov yam ntxwv zoo li High thermal conductivity thiab qis coefficient ntawm thermal expansion uas pab lawv kom ciaj sia nyob rau hauv corrosion cracking los ntawm chloride kev nyuaj siab.

Tshuaj muaj pes tsawg leeg ntawm Super Duplex Steel S32750 Flanges

Qib	C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
Super Duplex S32750	0.030 max	1.20 max	0.80 max	0.035 max	0.020 max	24 - 26	3 - 5	6 - 8	0.24 - 0.32	5 8.095m

Mechanical Properties ntawm Super Duplex S32750 / 1.4410 Flanges

Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
7,8g 3	1350 degree (2460 degree F)	Psi - 116000, MPa - 800	Psi - 80000, MPa - 550	15 %

2507 steel flange

Nta ntawm Super Duplex 2507 Flanges

Flanges yog cov cuab yeej yooj yim uas xav tau los ntawm txhua lub tshuab. Nws pab txuas cov kav dej nrog nws qhov chaw. Super Duplex 2507 Flanges tau muab thiab siv rau hauv cov chaw ua haujlwm kub thiab kev daws teeb meem. Nws yog ib qho superalloy thiab muaj cov hlau muaj zog hauv nws uas ua rau nws ruaj khov nyob rau hauv ib puag ncig corrosive. Nws muaj PRE feature uas txhais tau hais tias pitting kuj sib npaug. Nws muaj zoo mechanical zog thiab durability. Cervical corrosion thiab intergranular corrosion tsis cuam tshuam rau Super Duplex 2507 Flanges.

Nws lub zog tawm los yog ntau dua li lwm yam stainless hlau. Txij li thaum nws txhawb nqa cov tshuaj chloride erosive nws tuaj yeem siv rau hauv cov ntawv thov dej. Feem ntau, nws pab cov cav tov muaj txiaj ntsig hauv cov chaw tsim tshuaj lom neeg, thiab kev tsuas. Super duplex 2507 Flanges yog tsim los ntawm cov khoom siv nrog lub ntsuas sib zog, uas ua rau qis qis thiab qis dua cov nqi tsim khoom. Nws tsuas yog tsim nyog rau daim ntawv thov txog li 600 degrees F vim tias nws tsis tshua muaj thermal expansion tus nqi. Nws tuaj yeem siv rau hauv cov khoom siv pulp thiab ntawv, thiab cov khoom siv roj thiab roj.
